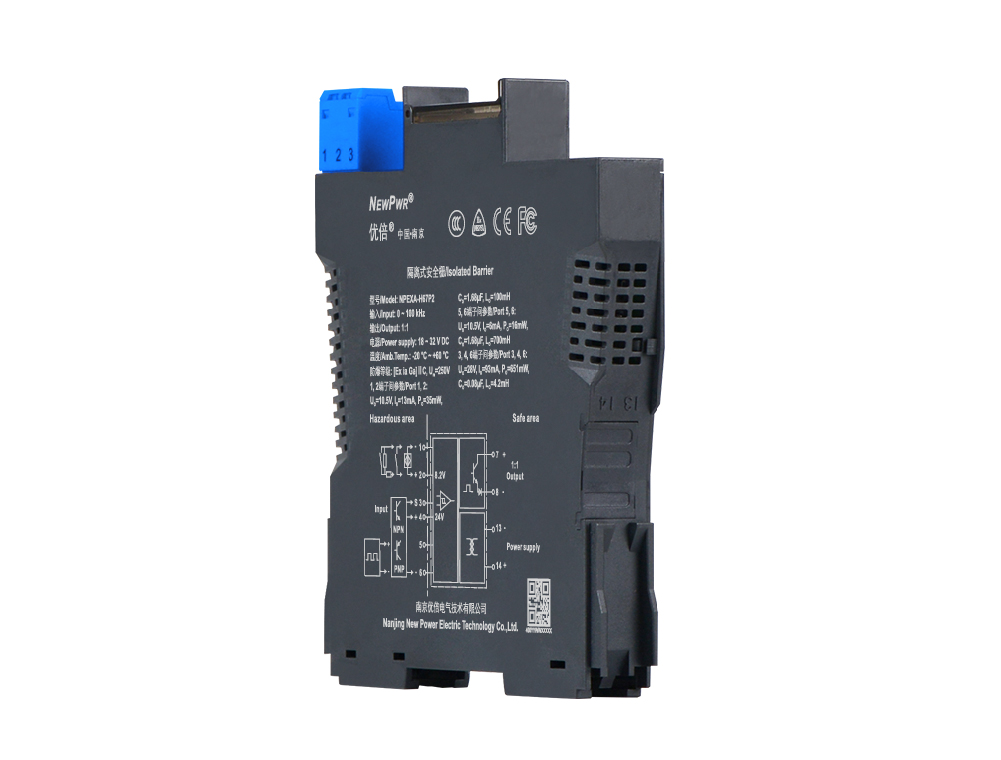

NPEXA-H67P2

Frequency input isolated barrier, it transfers the frequency signals from a hazardous area to a safe area. It needs a backplane power supply. The input, output, and power supply are galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Power Distribution

Share
NPEXA-H67P2

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Apparatus installation                            Apparatus disposal







Backplan installation                                Backplan disposal




¡¾Technical data¡¿ Supply Input Output General parameters EMC data Operating conditions ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal frequency input, Max. input voltage: 30V, Min. input amplitude: 2V, frequency range: 0 ~ 100kHz; PNP/NPN input, distribution voltage: 24V, current: ¡Ü 20mA, frequency range: 0 ~ 10kHz; NAMUR input, distribution voltage: approx.8.2V, short-circuit current: approx.8mA, frequency range: 0 ~ 10kHz
Output
Output signal Open collector, high level: Vcc (¡Ü 30V), low level£º¡Ü 2 V£¬£¬£¬£¬£¬drive current£º¡Ü 10 mA£»£»£»£»£»£»£»£»Emitter follower£¬£¬£¬£¬£¬ high level£ºVCC - 2 V£¬£¬£¬£¬£¬low level£º¡Ü 0.5 V£¬£¬£¬£¬£¬drive current£º¡Ü 10 mA£»£»£»£»£»£»£»£»Logic level , high level£º18 V ¡Ü VH ¡Ü 24 V£¬£¬£¬£¬£¬low level£ºVL ¡Ü 2 V£¬£¬£¬£¬£¬Load resistance£º¡Ý 2 k¦¸
General parameters
Power dissipation 0.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 2500V AC (intrinsically safe side / non-intrinsically safe side); ¡Ý 500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 15.8mm (W) ¡Á 121.6mm (H) ¡Á 104.8mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC
Um 250 V
Uo 10.5 V (Terminals 1, 2); 10.5 V (Terminals 5, 6); 28 V (Terminals 3, 4, 6)
Io 13 mA (Terminals 1, 2); 6 mA (Terminals 5, 6); 93 mA (Terminals 3, 4, 6)
Po 35 mW (Terminals 1, 2); 16 mW (Terminals 5, 6); 651 mW (Terminals 3, 4, 6)
Co 1.68 ¦ÌF (Terminals 1, 2); 1.68 ¦ÌF (Terminals 5, 6); 0.08 ¦ÌF (Terminals 3, 4, 6)
Lo 100 mH (Terminals 1, 2); 700 mH (Terminals 5, 6); 4.2 mH (Terminals 3, 4, 6)
