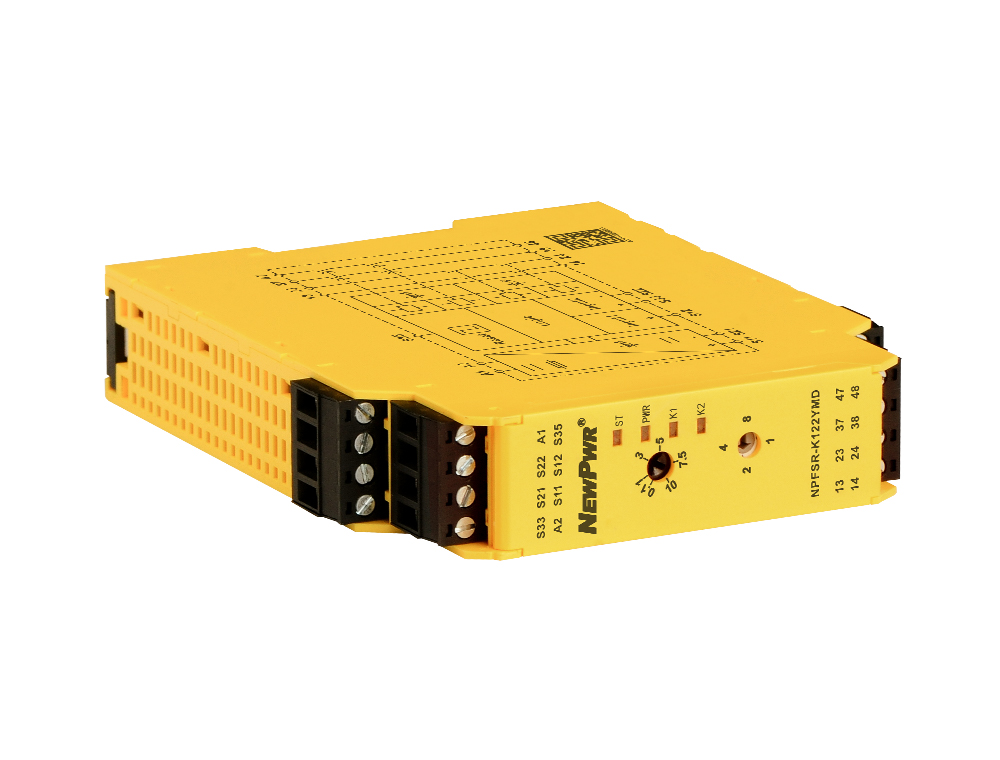

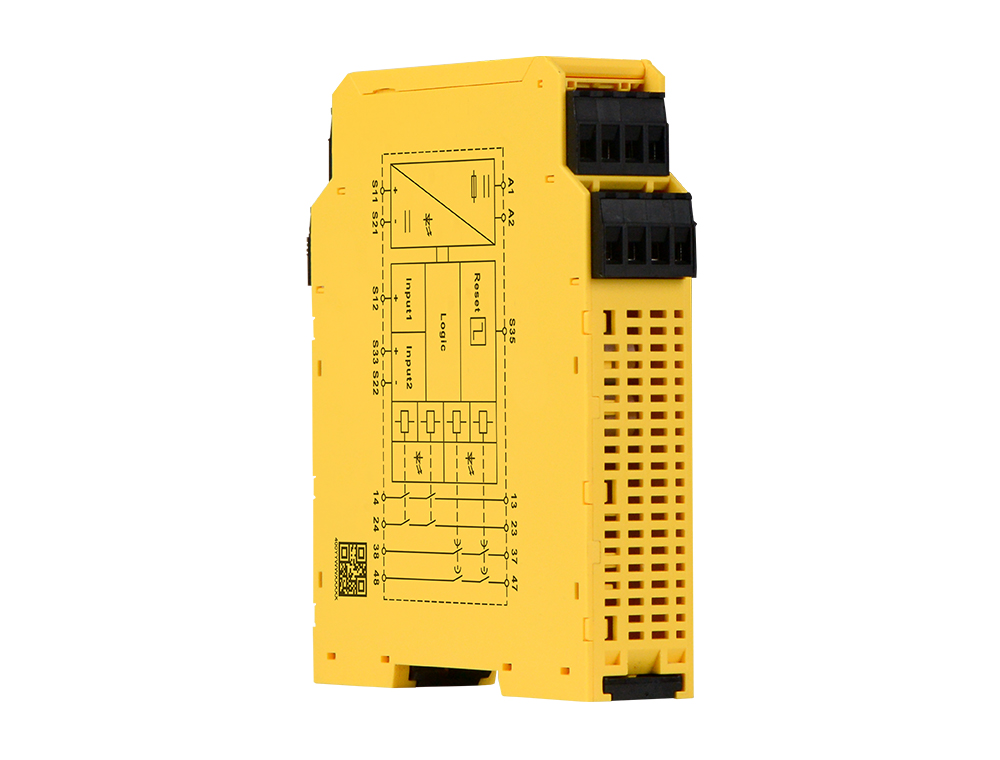

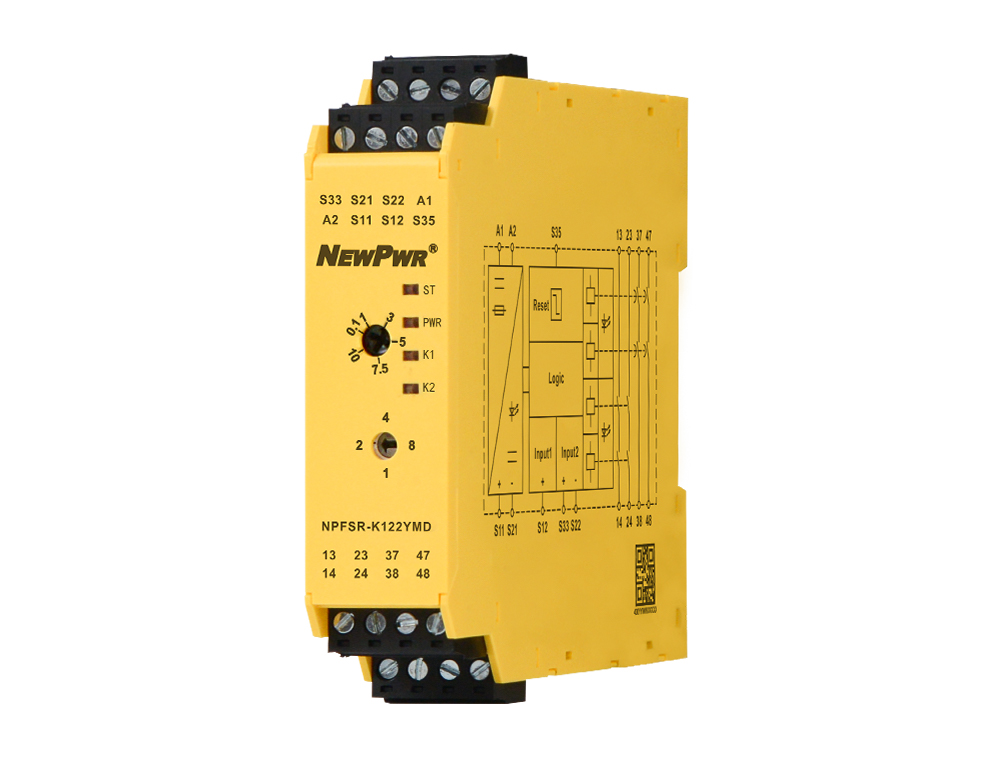

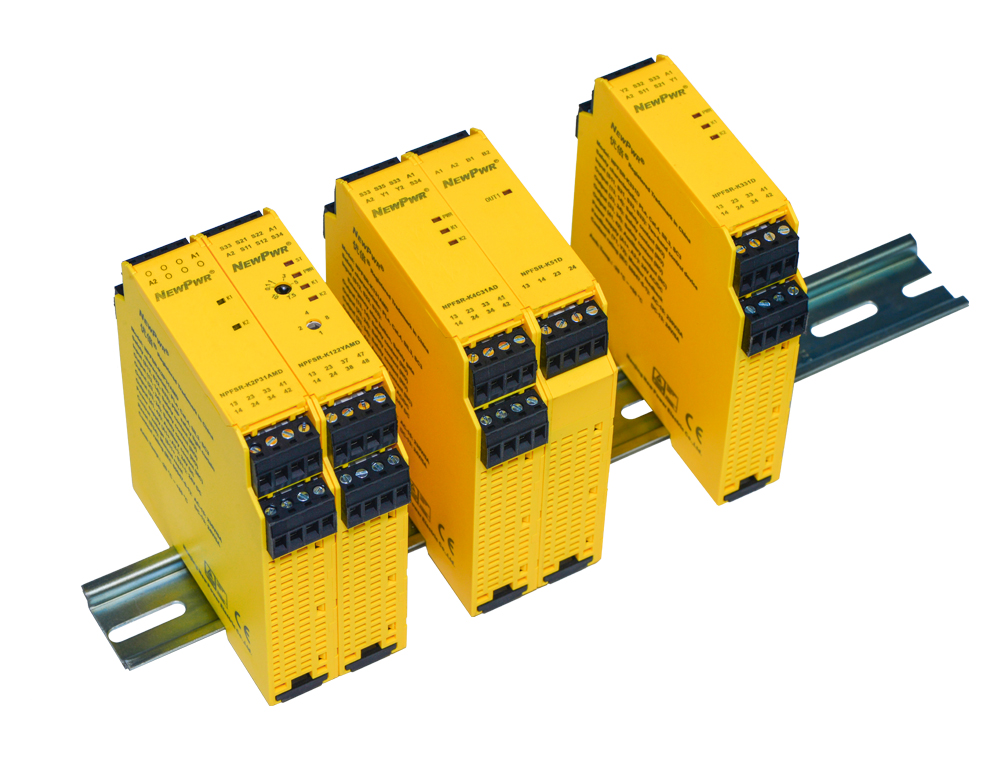

NPFSR-K122YMD

The inputs of K series E-STOP, safety gate input safety relays are normally closed contact signals, which are used for emergency braking or the protection of people entering dangerous areas, and widely used in machining and other industries. Main features: 1oo2 architecture. With detection of shorts across contacts. With monitored manual reset function. The safety function remains effective in the case of a component failure. The correct opening and closing of the safety function relays is tested automatically in each on-off cycle.
玖鼎集团(中国区)有限公司官网 玖鼎集团(中国区)有限公司官网 玖鼎集团(中国区)有限公司官网 玖鼎集团(中国区)有限公司官网

Input devices

Signal type

Voltage range

Reset method

Share
NPFSR-K122YMD

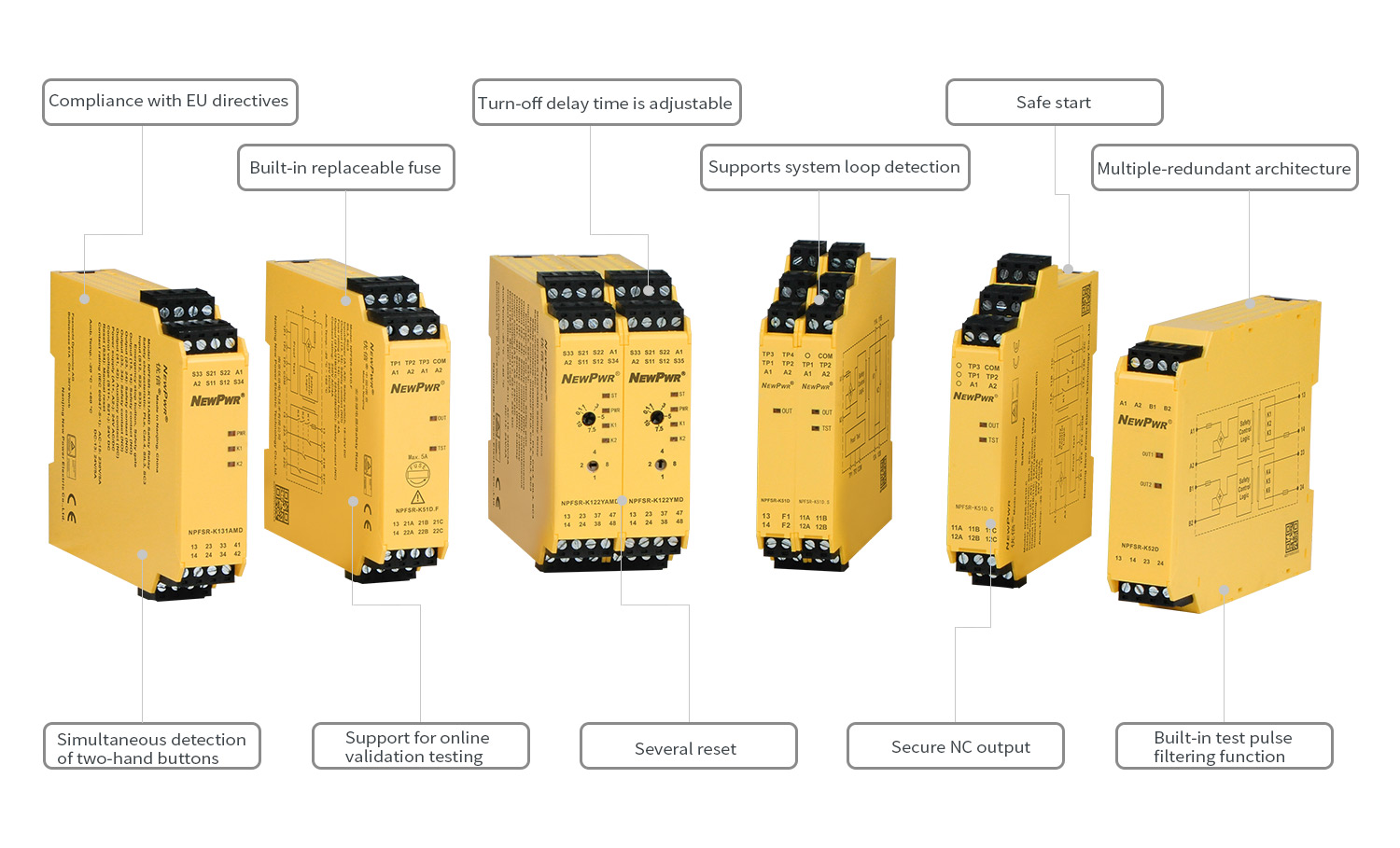

【Core technology】


【Installation and disposal】






Installation                                               Disposal


【Technical data】 Supply Input Output General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Technical data
PFH 1.77E-10 1/h, according to IEC 62061(For non-delay contacts: 13/14，，， ，，23/24);1.85E-10 1/h, according to IEC 62061 (For de-delay contacts: 37/38，，， ，，47/48)
Supply
Voltage range 24V DC
Voltage tolerance 0.85 ~ 1.1
Input
Current consumption ≤ 50mA/24V DC
Cable resistance ≤ 15Ω
Input devices E-STOP button, Safety gate
Output
Signal type 2 NO, non-delay + 2 NO, d-delay
Contact type Forced guided
Contact material AgSnO2
Contact loading AC-15: 3A/230V, DC-13: 3A/24V
Contact fuse protection 10A gL/gG(NO)
General parameters
Delay time Tset 0.1~80s, default 10s
Delay time accuracy ±15%
Switch-on ≤ 150ms
Release E-stop: ≤ 30ms; Power failure: ≤ 100ms
Recovery time E-stop: ≤ 30ms, Power failure: ≤ 100ms
Supply short interruption 20ms
Power dissipation ≤ 3.8W/24V DC
EMC data
EMC According to IEC/EN 60947, IEC 61326-3-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Rated insulation voltage 250V AC
Rated impulse voltage 6000V(1.2/50us)
Dielectric strength 1500V AC, 1 min
Clearance and creepage According to IEC 60947-1
Operating conditions
Vibration 10Hz ~ 55Hz, 0.35mm
Overvoltage category III
Pollution degree 2
Protection type IP20
Ambient temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Mechanical specifications
Connection method Screw connection
Dimension 23 mm(W)×100 mm(H)×115 mm(D)
Mounting type DIN35mm
Certified data
Product approvals SIL, CE
Performance level PLe, according to ISO 13849 (For non-delay contacts: 13/14，，， ，，23/24); PLd, according to ISO 13849 (For de-delay contacts: 37/38，，， ，，47/48)
Category Cat.4, according to ISO 13849(For non-delay contacts: 13/14，，， ，，23/24); Cat.3, according to ISO 13849(For de-delay contacts: 37/38，，， ，，47/48)
PTI (TM) 20 years, according to ISO 13849
DCavg 99%, according to ISO 13849(For non-delay contacts: 13/14，，， ，，23/24); 90%, according to ISO 13849(For de-delay contacts: 37/38，，， ，，47/48)
MTTFD 164 years, according to ISO 13849(For non-delay contacts: 13/14，，， ，，23/24);161 years, according to ISO 13849(For de-delay contacts: 37/38，，， ，，47/48)
CCF 68, according to ISO 13849
SIL SIL3, according to IEC 61508
SIL CL SIL CL3, according to IEC 62061
HFT 1, according to IEC 62061
SFF ≥ 99%, according to IEC 62061
PFDavg/PTI=20 years 1.53E-5, according to IEC 62061 (For non-delay contacts: 13/14，，， ，，23/24);1.59E-5, according to IEC 62061 (For de-delay contacts: 37/38，，， ，，47/48)
Stop Category 0, according to IEC 60204 (For non-delay contacts: 13/14，，， ，，23/24);1, according to 60204(For de-delay contacts: 37/38，，， ，，47/48)
