NPDL-C00211031

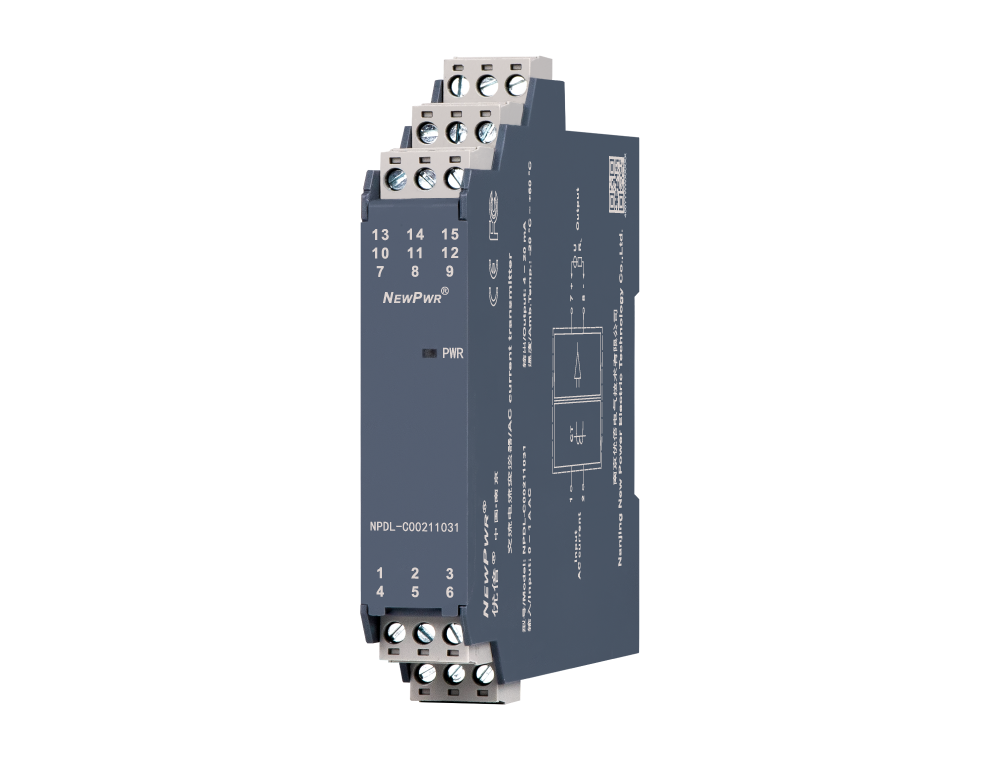

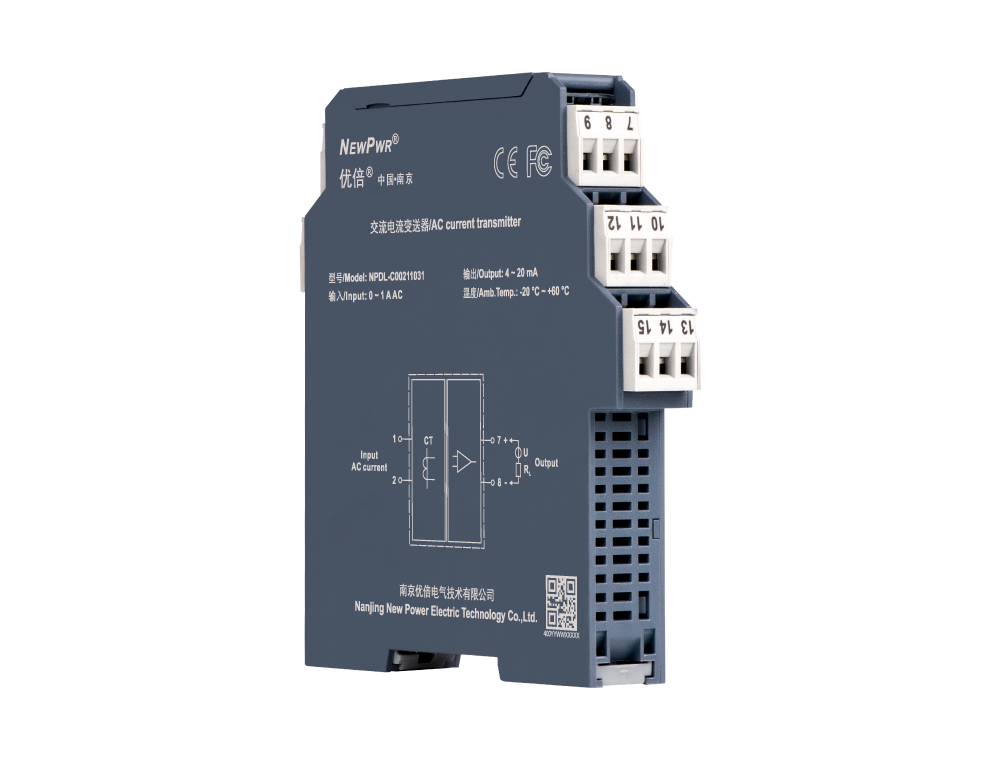

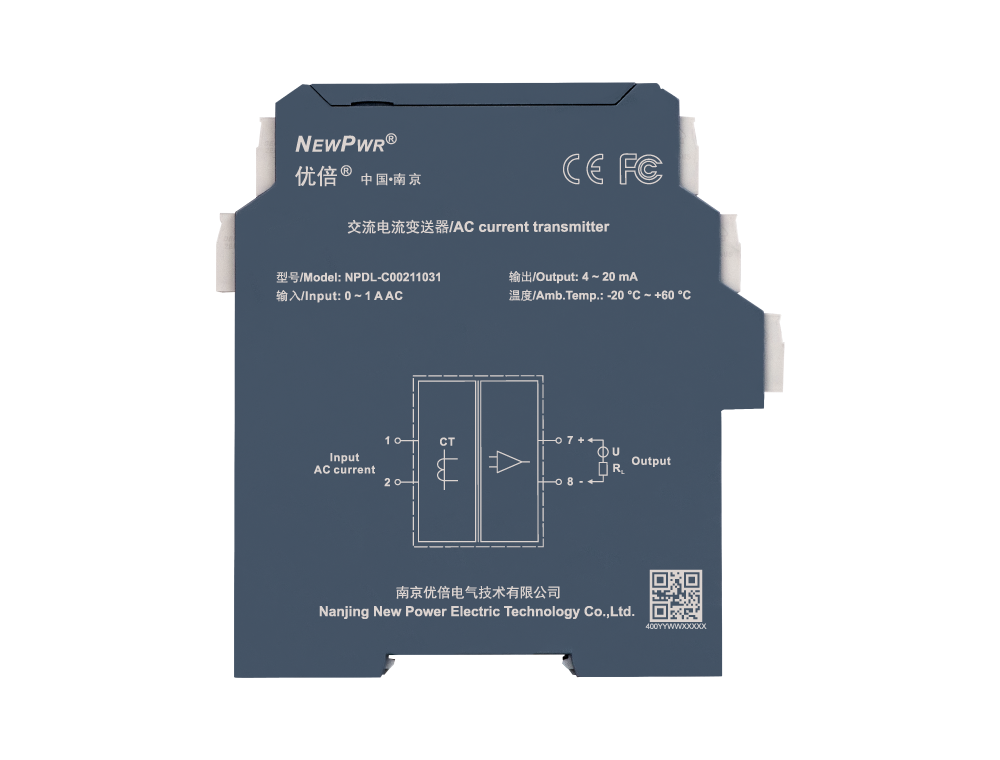

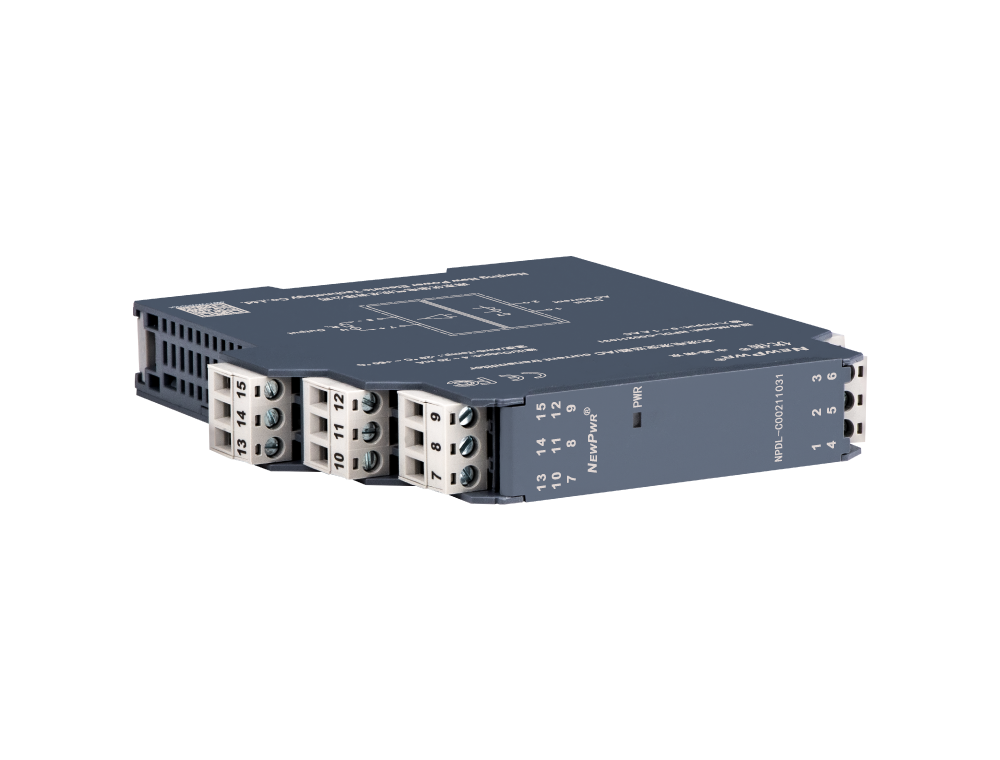

This AC current transmitter converts the 0 ~ 1 A AC signals to current signals. It has loop powered. The input and output is galvanically isolated from each other.

Input signal

Output signal

Power Supply Mode

Share
NPDL-C00211031
【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Loop Powered 12 ~ 30 V DC
Input
Input signal 0 ~ 1 A AC
Frequency range 40 Hz ~ 400 Hz
Overload capacity double input nominal value
Output
Output signal 4 ~ 20 mA
Load resistance RL < [(U-12)/0.02]Ω; U: Loop power supply
Transfer characterisics
Accuracy 0.2 %F.S. ( 0 ~ 120% )
Temperature drift 50ppm/℃
General parameters
Response time ＜ 330 ms
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 1500V AC (Input /Output)
Insulation resistance ≥ 100 MΩ (Input /Output)
Operating conditions
Operation temperature -20℃～+60℃
Storage temperature -40℃～+80℃
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
