NPEXA-CM31S1S

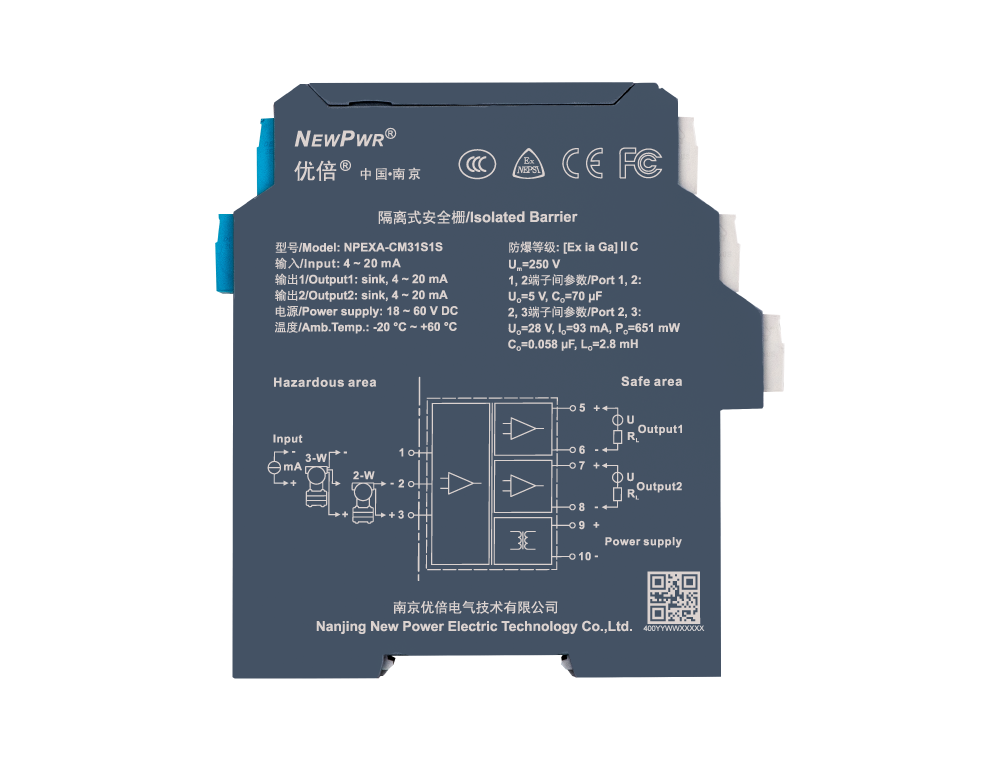

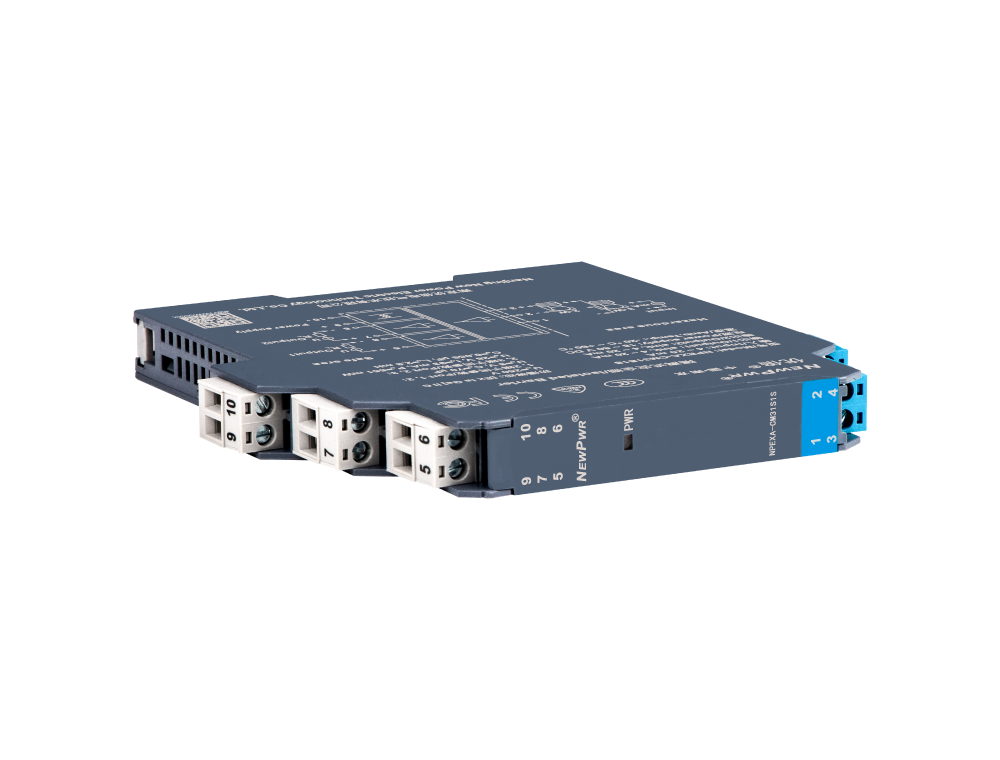

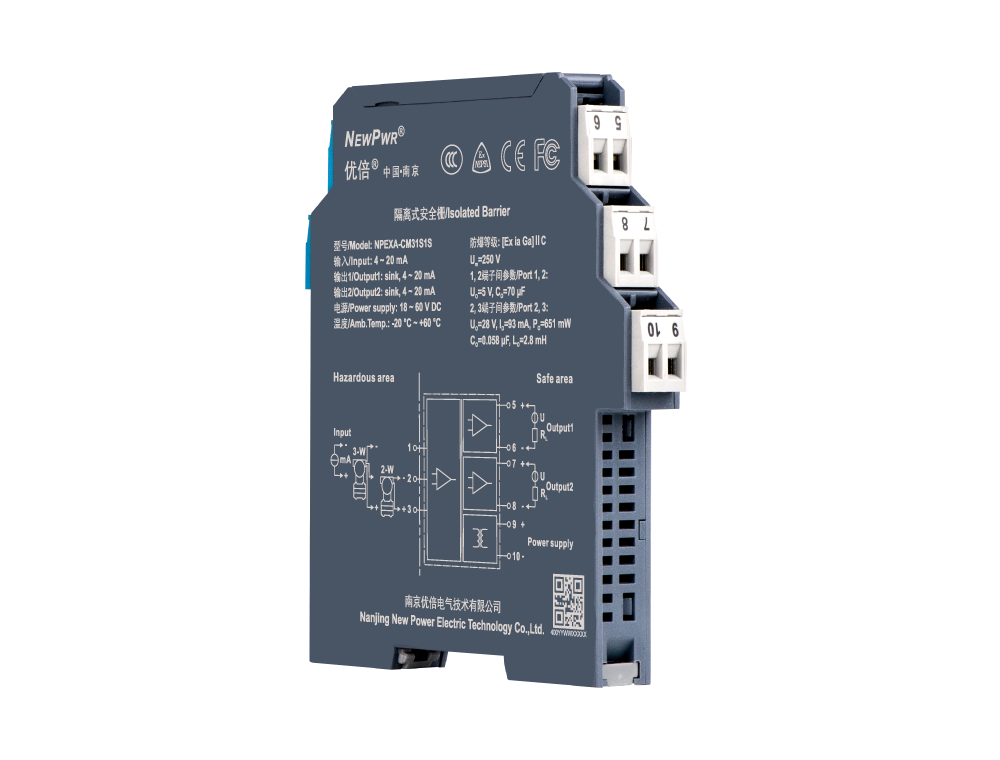

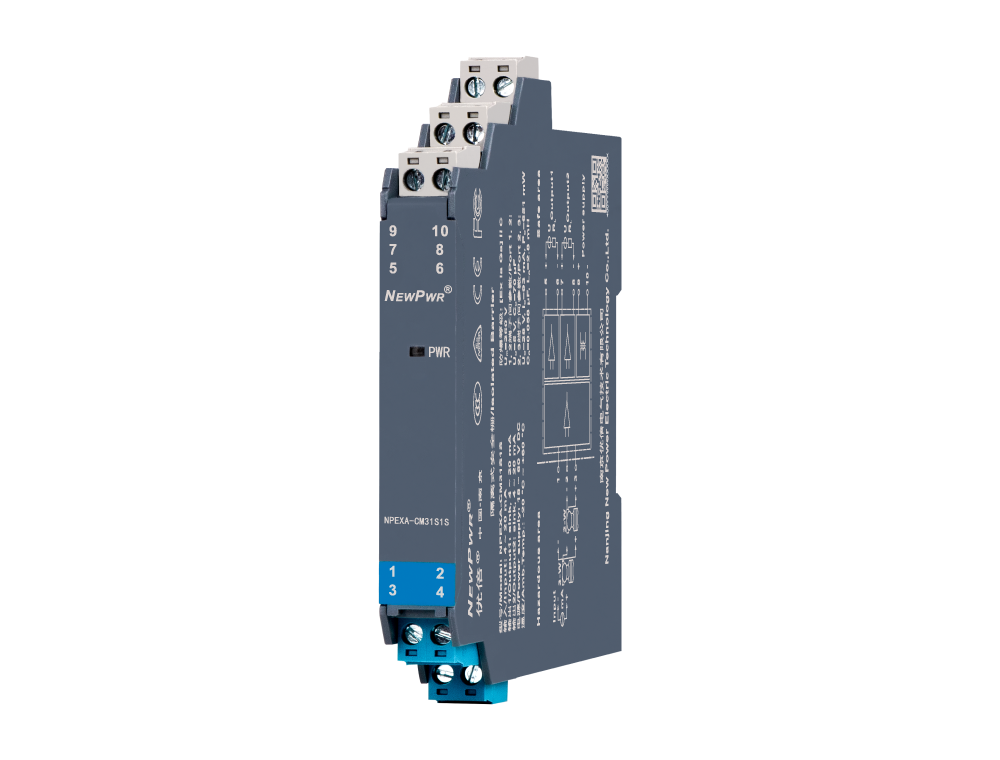

Analog input isolated barrier, it detects loop current and converts it from a hazardous area into 4~20mA£¨sink£© signals to a safe area by isolation, and also provides transmitters with power in the hazardous area. It allows transmission of HART communication signals. The input, output, and power supply are galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPEXA-CM31S1S

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal 4 ~ 20mA, HART
Line resistance approx. 75¦¸
Available voltage open-circuit voltage ¡Ü 26V; voltage: ¡Ý 16V at 20mA
Output
Output signal 4 ~ 20mA (Sink), HART
Load resistance RL < [(U-3)/0.02]¦¸; U: Loop power supply
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/¡æ
General parameters
Response time ¡Ü 2 ms
Power dissipation 1.0 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side); ¡Ý 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC
Um 250 V
Uo 5 V (Terminals 1, 2); 28V (Terminals 2, 3)
Io 93 mA (Terminals 2, 3)
Po 651 mW (Terminals 2, 3)
Co 70 ¦ÌF (Terminals 1, 2); 0.058 ¦ÌF (Terminals 2, 3)
Lo 2.8 mH (Terminals 2, 3)
