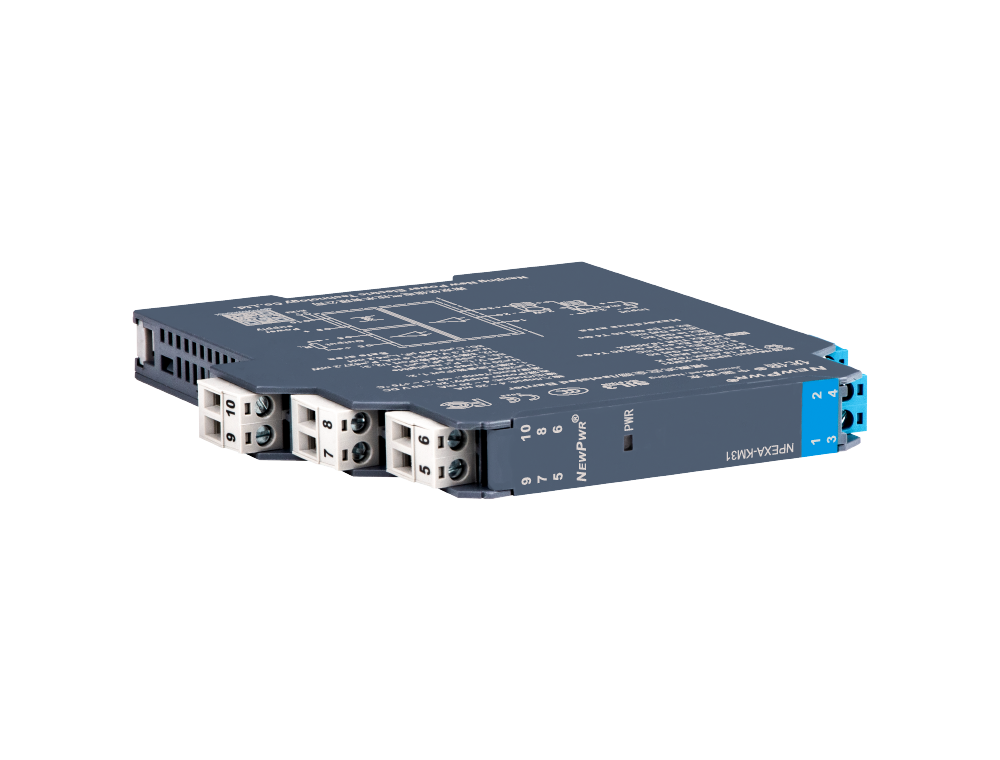

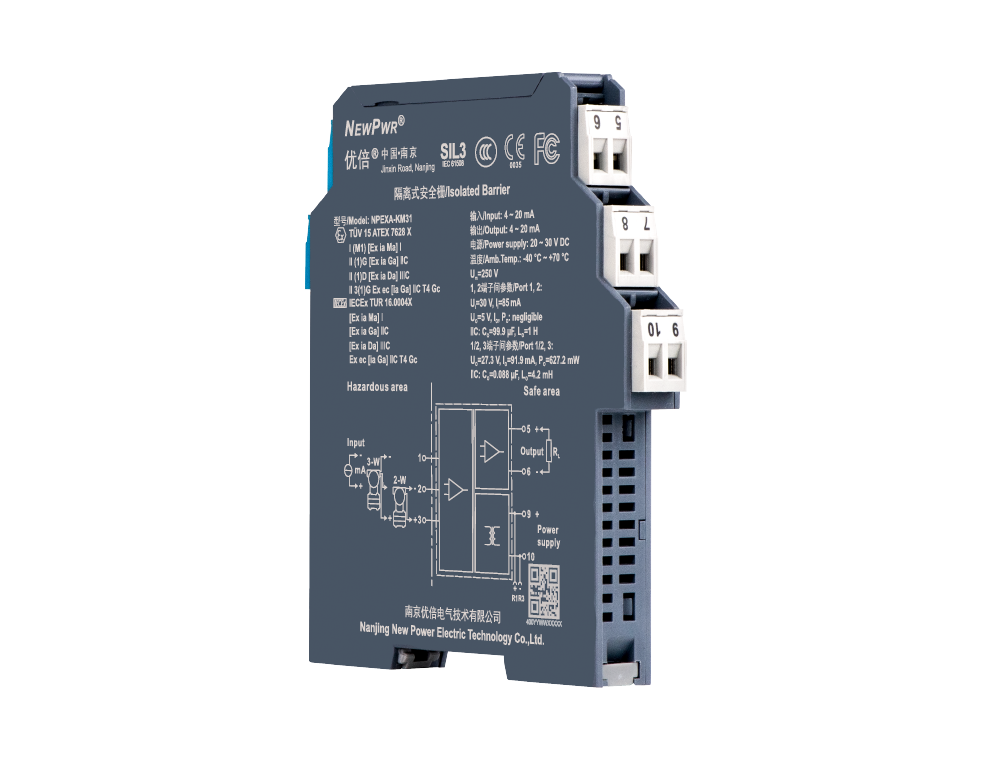

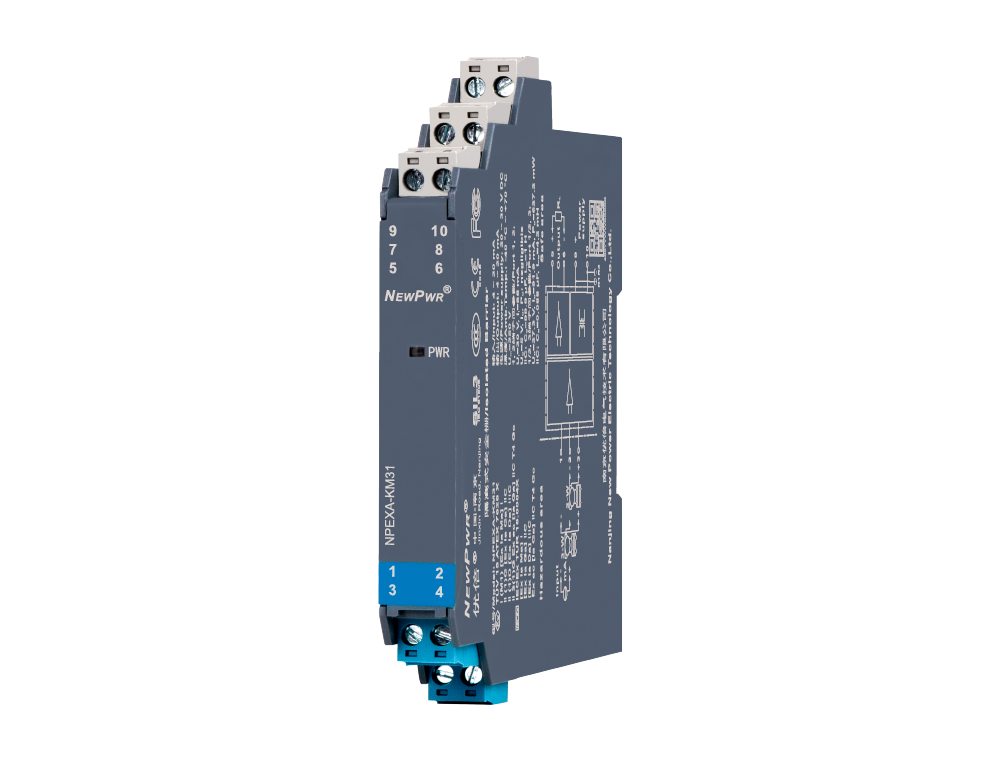

NPEXA-KM31

Analog input isolated barrier, it detects loop current and converts it from a hazardous area into 4~20mA signals to a safe area by isolation, and also provides transmitters with power in the hazardous area. It allows transmission of HART communication signals. The input, output, and power supply are galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPEXA-KM31

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal



¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions State ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 20 ~ 30 V DC
Input
Input signal 4 ~ 20mA, HART
Line resistance approx. 75¦¸
Available voltage open-circuit voltage ¡Ü 26V; voltage: ¡Ý 16V at 20mA
Output
Output signal 4 ~ 20mA, HART
Load resistance RL ¡Ü 550 ¦¸
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/¡æ
General parameters
Response time ¡Ü 2 ms
Power dissipation ¡Ü 1.2 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side) ¡Ý 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -40¡ãC ~ +70¡ãC
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ?, ¢òA, ¢òB, ¢òC, ¢óC, T4 ~ T6. When the apparatus used in zone 2, please comply with the special conditions of use in the instructions.
State
Safe state The output signal is less than 3.6mA or greater than 21.5mA
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals ATEX, IECEx, SIL, CCC
Type of equipment Type A
Hardware fault margin(HFT) 0
Mode of demand low/high
Safety integrity level(SIL) SIL3
¦ËS (1 FIT=10-9/h) 462.643 FIT
¦ËDU (1 FIT=10-9/h) 13.871 FIT
¦ËDD (1 FIT=10-9/h) 0.21 FIT
¦ËTOTAL (1 FIT=10-9/h) 477.284 FIT
SFF £¾ 90%
PFDavg(T1=1Y) 6.0755E-05
PFH 1.3871E-08 1/h
Ex marking [Ex ia Ma] ¢ñ¡¢[Ex ia Ga] ¢òC¡¢[Ex ia Da] ¢óC¡¢Ex ec [ia Ga] ¢òC T4 Gc
Um 250 V
Uo 5 V (Terminals 1, 2)£»£»£»£»£»£»£» £»27.3 V (Terminals 1/2, 3)
Io 91.9 mA (Terminals 1/2, 3)
Po 627.2 mW (Terminals 1/2, 3)
Co (?C) 99.9 ¦ÌF (Terminals 1, 2)£»£»£»£»£»£»£» £»0.088 ¦ÌF (Terminals 1/2, 3)
Lo (?C) 1 H (Terminals 1, 2)£»£»£»£»£»£»£» £»4.2 mH (Terminals 1/2, 3)
