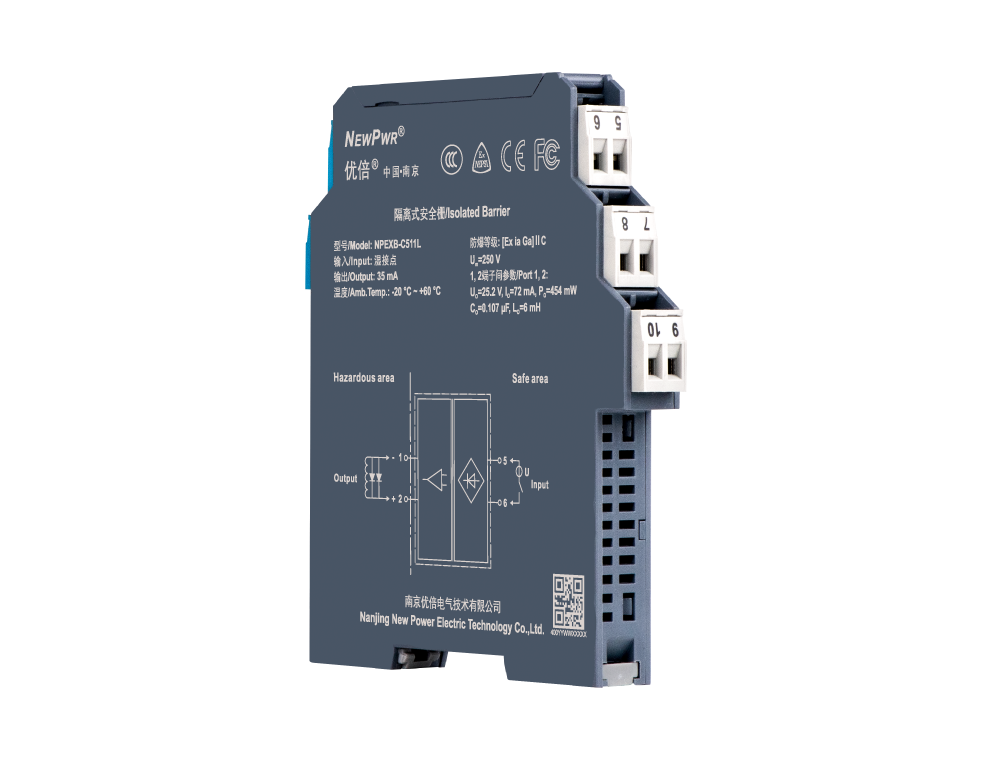

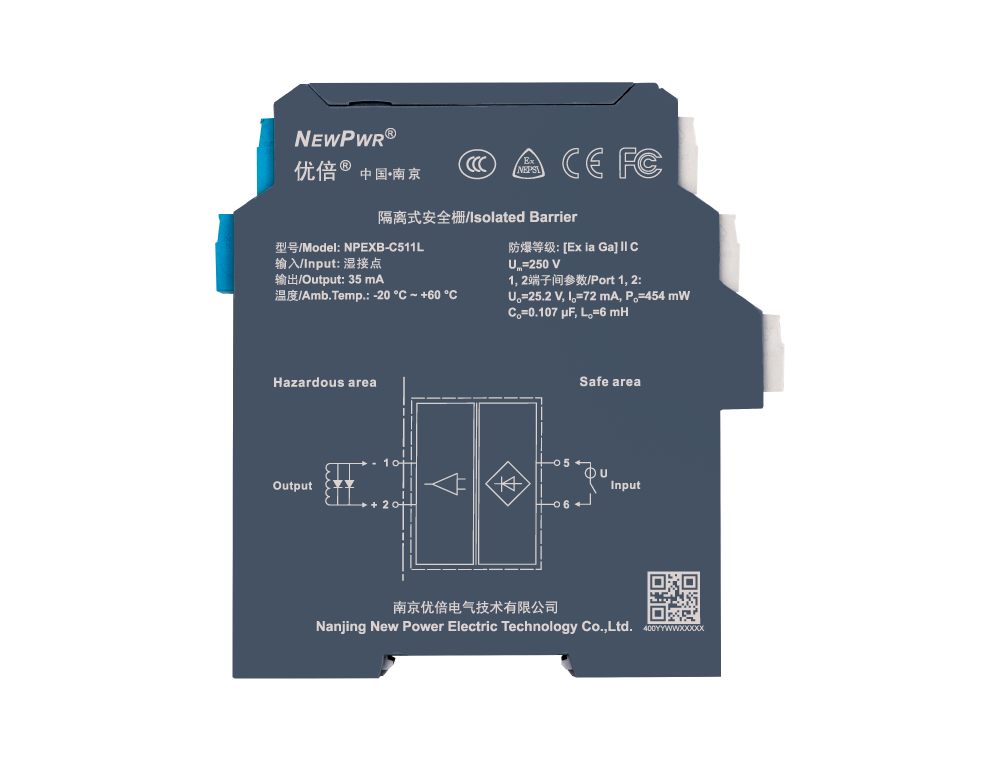

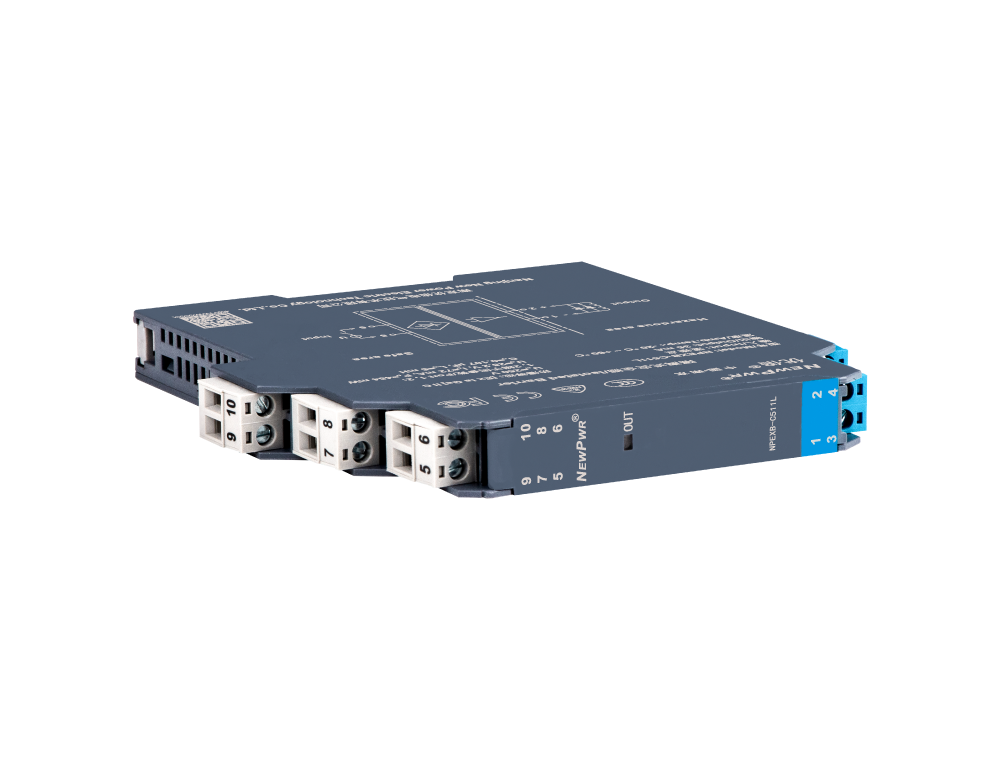

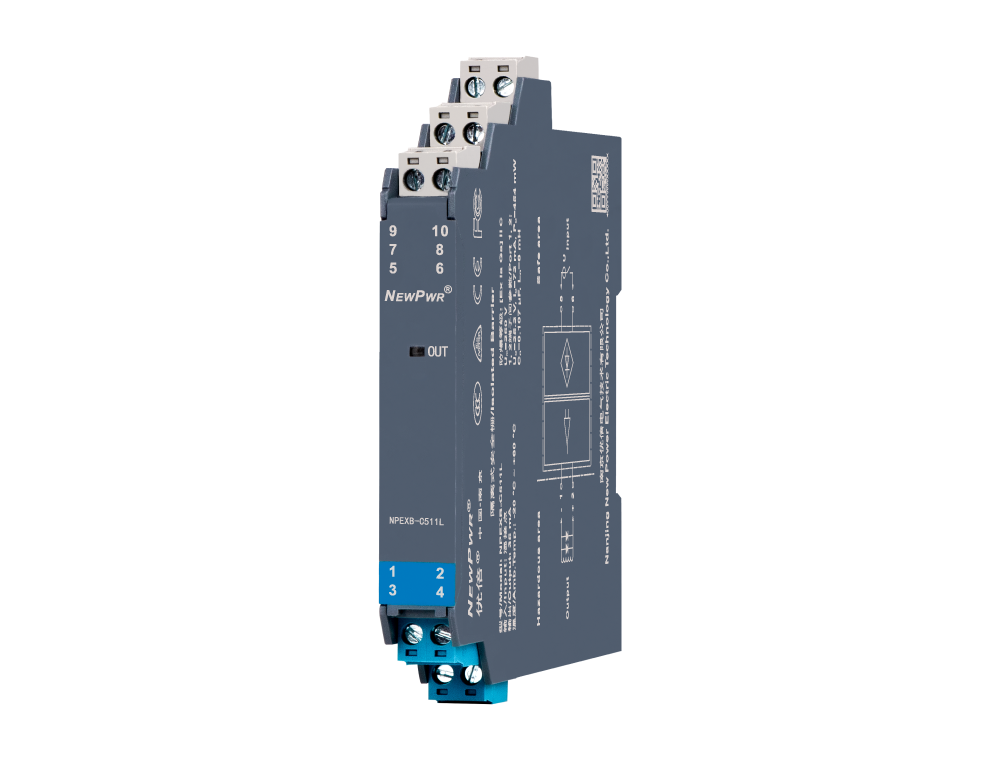

NPEXB-C511L

Digital output isolated barrier. By switch signal controlling, transfers the wet contact signals from a safe area into current signals to a hazardous area, and drives field device like intrinsically safe valves, audible alarms, etc. It has loop powered. The input and output is galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXB-C511L

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






¡¾Technical data¡¿ Supply Input Output General parameters EMC data Operating conditions ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Loop Powered 20 ~ 30 V DC
Input
Input signal wet contact
Output
Output voltage £¾ 8.75 V DC
Output current ¡Ü 35 mA
Open-circuit voltage 21.5 V DC
General parameters
Response time £¼ 20 ms
Power dissipation ¡Ü 1.2 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, ¢òC, T4 ~ T6
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òC
Um 250 V
Uo 25.2 V (Terminals 1, 2)
Io 72 mA (Terminals 1, 2)
Po 454 mW (Terminals 1, 2)
Co 0.107 ¦ÌF (Terminals 1, 2)
Lo 6 mH (Terminals 1, 2)
