NPEXB-C513L

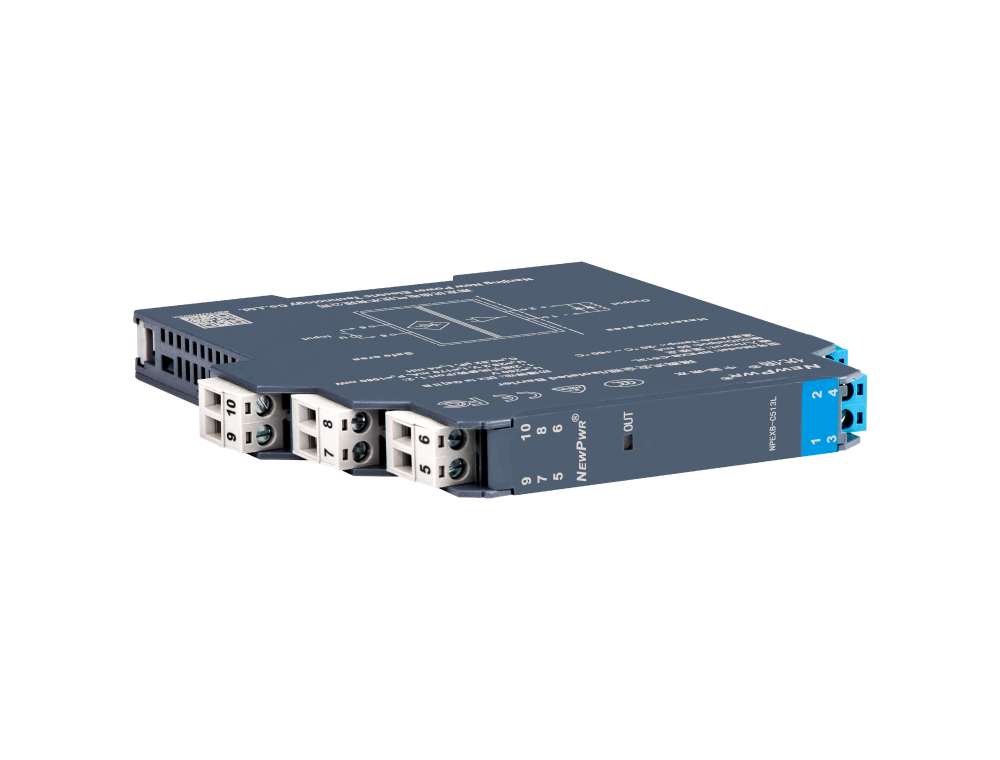

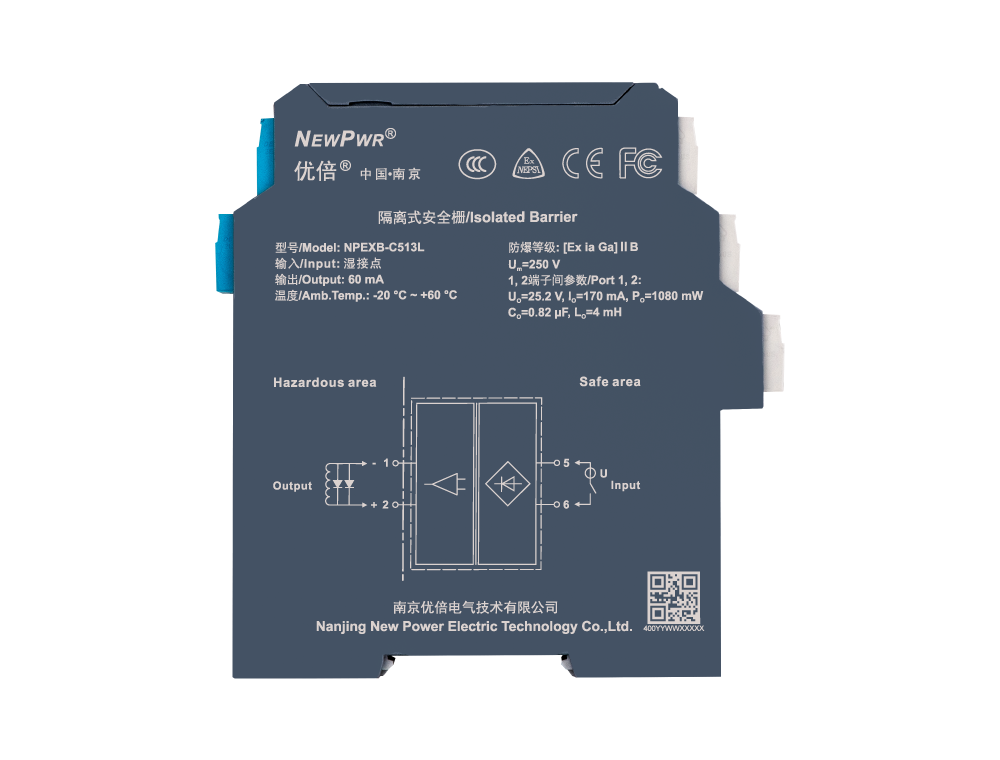

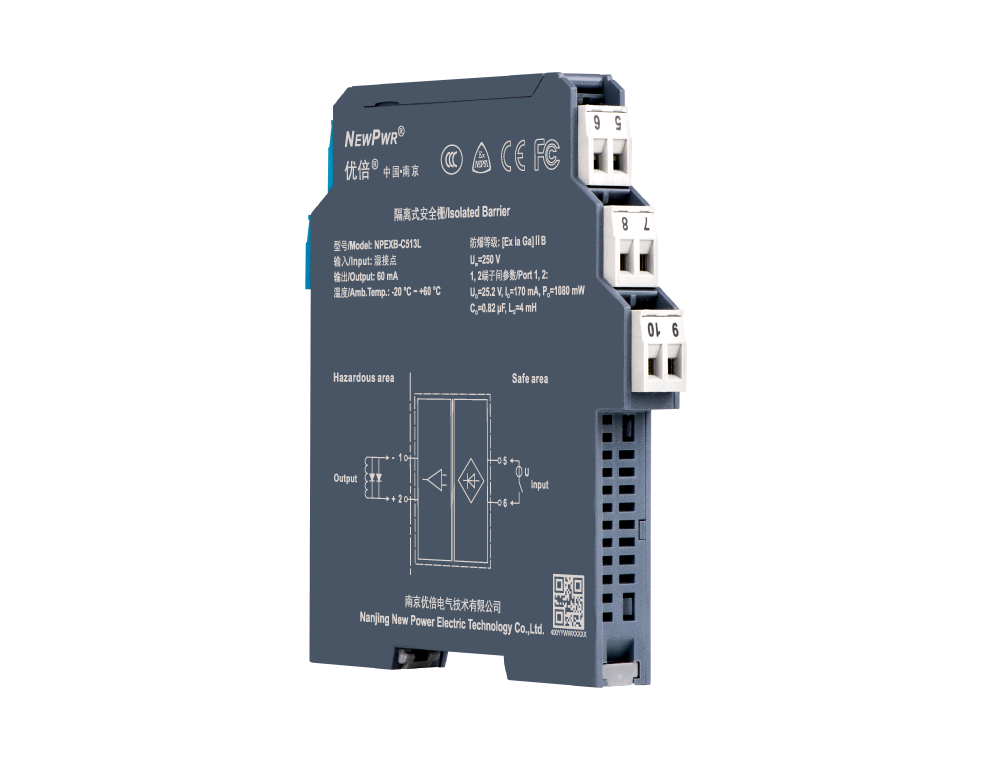

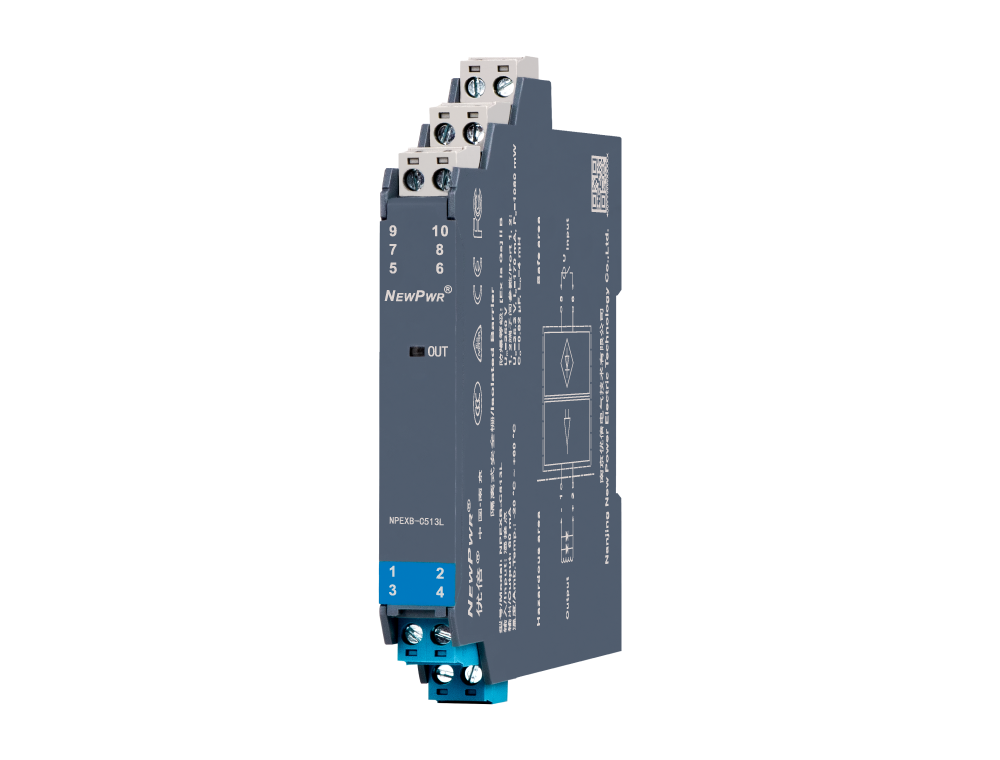

Digital output isolated barrier. By switch signal controlling, transfers the wet contact signals from a safe area into current signals to a hazardous area, and drives field device like intrinsically safe valves, audible alarms, etc. It has loop powered. The input and output is galvanically isolated from each other.
¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø ¾Á¶¦¼¯ÍÅ(ÖйúÇø)ÓÐÏÞ¹«Ë¾¹ÙÍø

Input signal

Output signal

Channels

Power Supply Mode

Share
NPEXB-C513L

¡¾Core technology¡¿


¡¾Installation and disposal¡¿






Installation                                               Disposal






Supply
Loop Powered 20 ~ 30 V DC
Input
Input signal wet contact
Output
Output voltage £¾ 12 V DC
Output current ¡Ü 60 mA
Open-circuit voltage 22 V DC
General parameters
Response time £¼ 20 ms
Power dissipation ¡Ü 1.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 3000V AC (intrinsically safe side / non-intrinsically safe side)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ¢òA, ¢òB, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]¢òB
Um 250 V
Uo 25.2 V (Terminals 1, 2)
Io 170 mA (Terminals 1, 2)
Po 1080 mW (Terminals 1, 2)
Co 0.82 ¦ÌF (Terminals 1, 2)
Lo 4 mH (Terminals 1, 2)
