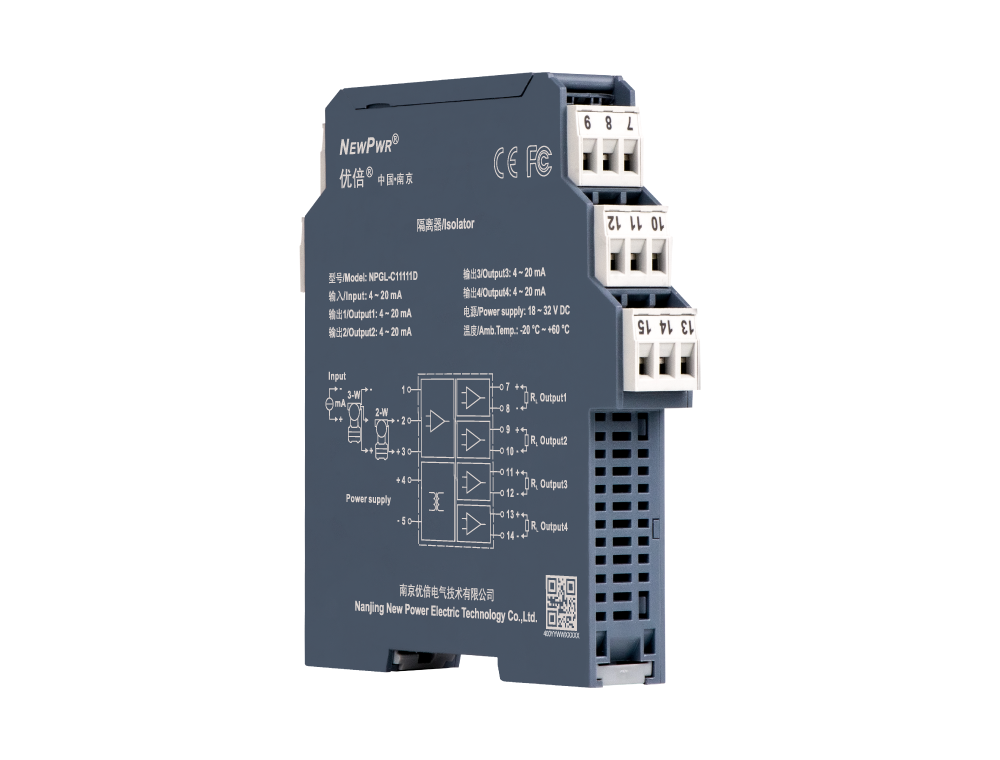

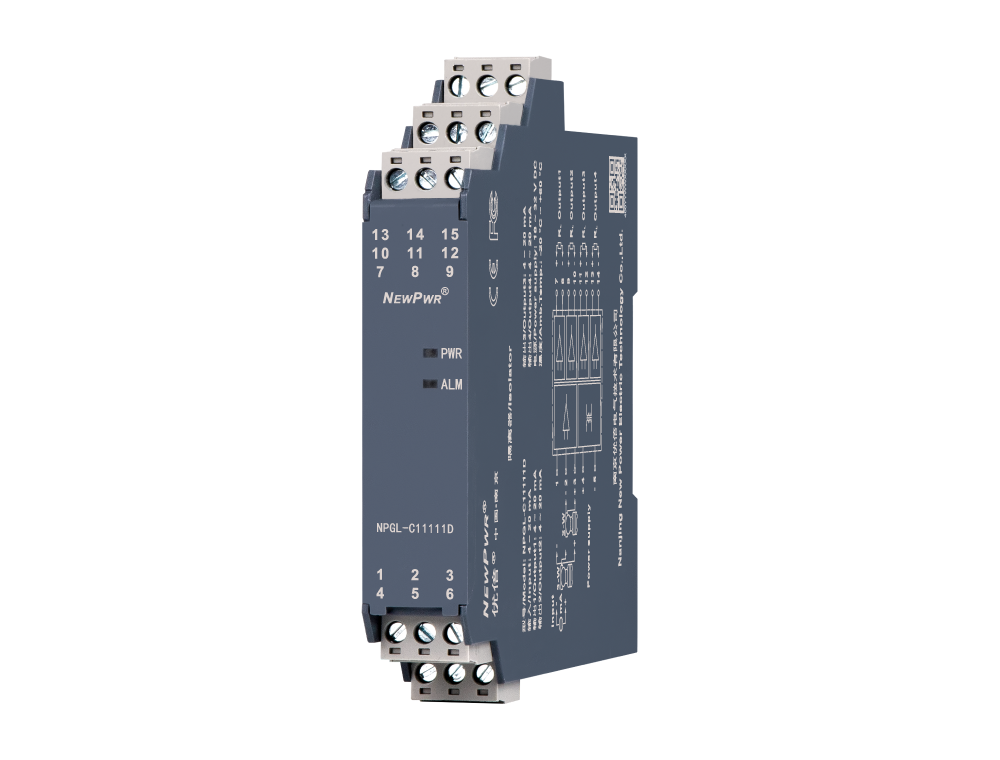

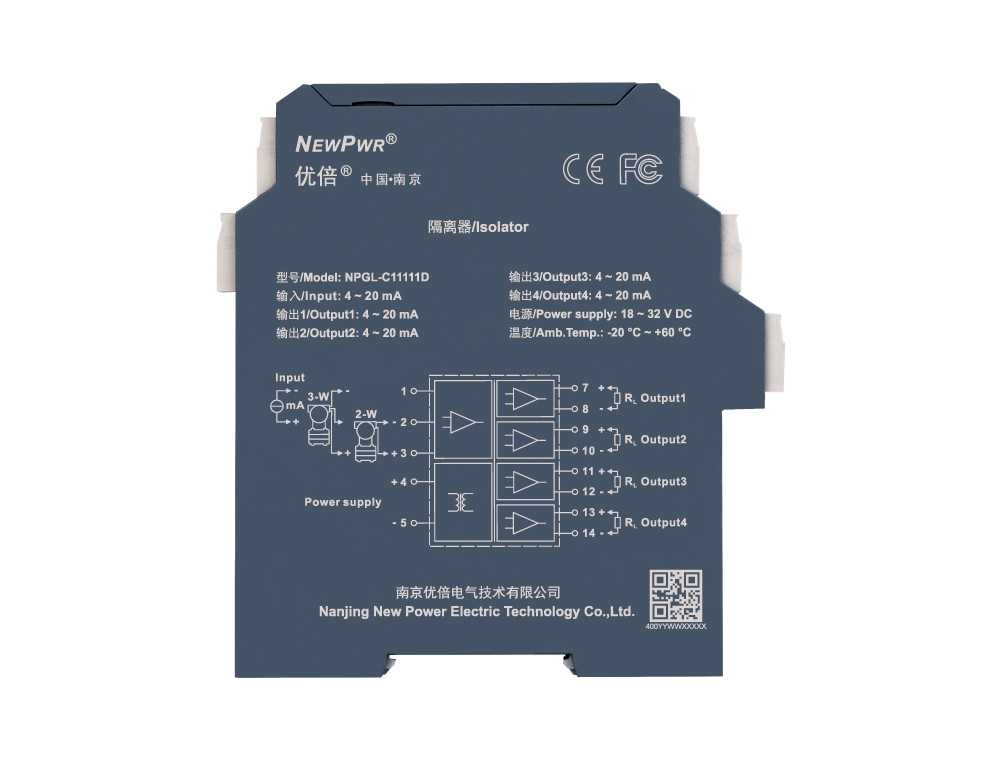

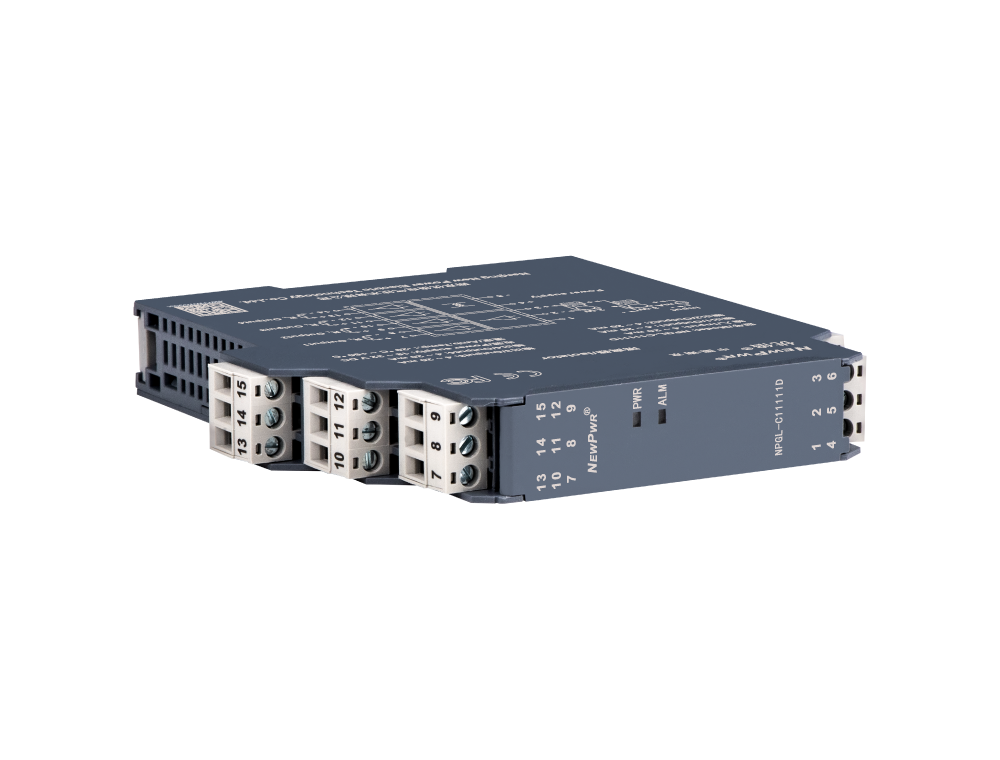

NPGL-C1111D

This isolator converts the current signals to 4~20mA signals, and also provides transmitters with power. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. Calibrate the apparatus or modify parameters by using a handheld programmer.

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPGL-C1111D

¡¾Core technology¡¿



¡¾Installation and disposal¡¿






Installation                                               Disposal




¡¾Technical data¡¿ Supply Input Output Transfer characterisics General parameters EMC data Operating conditions ¡¾Mechanical specifications¡¿ Mechanical specifications ¡¾Certified data¡¿ Certified data
Supply
Power supply 18 ~ 32 V DC
Input
Input signal 4 ~ 20 mA
Line resistance ¡Ü 60 ¦¸
Available voltage open-circuit voltage ¡Ü 26V; voltage: ¡Ý 22V at 20mA
Output
Output signal 4 ~ 20 mA
Load resistance RL ¡Ü 550 ¦¸
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/¡æ
General parameters
Response time ¡Ü 500 ms
Power dissipation ¡Ü 3 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ¡Ý 1500V AC (Input /Output/Power supply)
Insulation resistance ¡Ý 100 M¦¸ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ¡æ ~ +60 ¡æ
Storage temperature -40 ¡æ ~ +80 ¡æ
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) ¡Á 110mm (H) ¡Á 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
