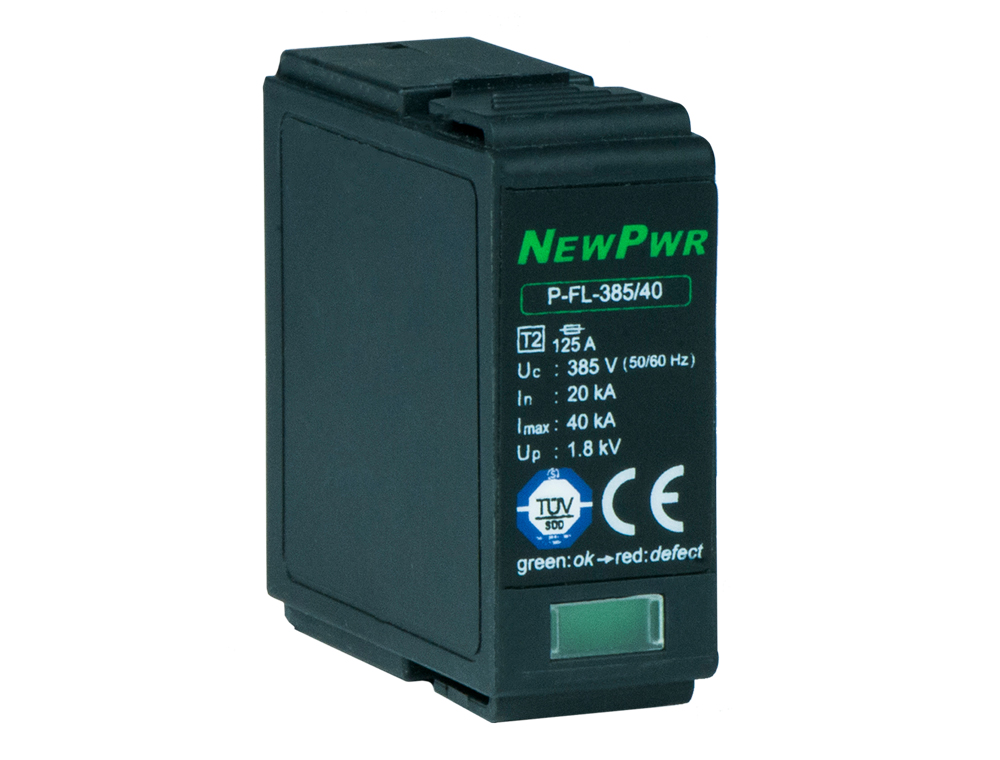

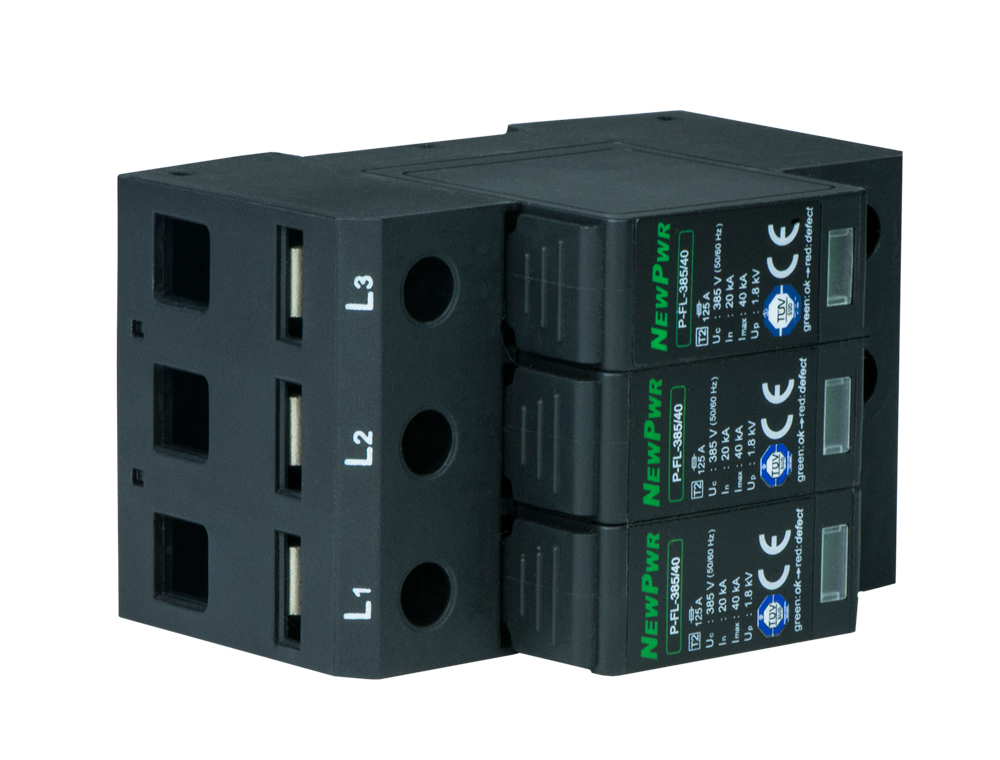

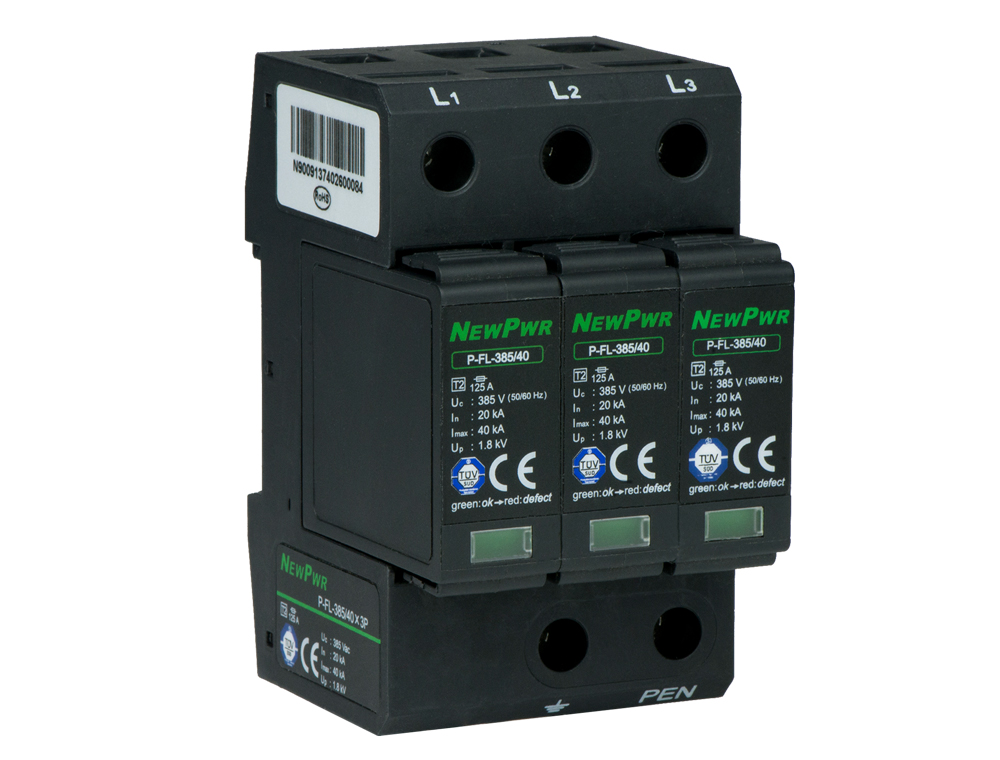

P-FL-385/40¡Á3P
¡¾Core technology¡¿
¡¾Installation and disposal¡¿
Installation Disposal
| Nominal voltage Un | 230/400 Vac |
| Max. continuous operating voltage Uc | 385 Vac |
| Response time Ta | ¡Ü 25 ns |
| Nominal discharge current In (8/20 ¦Ìs) | 20 kA |
| Max. discharge current Imax (8/20 ¦Ìs) | 40 kA |
| Voltage protection level Up | 1.8 kV |
| Voltage protection level (5kA) Up | 1.3 kV |
| Max. overcurrent protection | ¡Ü 125 A gL/gG or SCB(P-SC-385/40¡Á3P) |
| Operating temperature | -40 ¡æ ~ +80 ¡æ |
| Enclosure material | Thermoplastic |
| Flame retardant grade (UL94) | V0 |
| Protection degree | IP20 |
| Remote communication function | Selection, Product model with remote terminals: P-FL-24/20.DRP-FL-385/40¡Á3PR |
| Switching capacity | 125 VAC/1 A, 125 VDC/0.2 A |
| Operating state/fault indication | Green / red |
| Enclosure dimensions (H¡ÁW¡ÁD) | 90 mm ¡Á 54 mm ¡Á 66 mm |
| Cross-sectional area (Min.) | 1.5 mm? stranded / flexible |
| Cross-sectional area (Max.) | 25 mm? stranded / flexible |
| Installtion | 35 mm DIN rail |
| Standards | IEC 61643-11/ EN 61643-11 |
| Product approvals | TUV, UL, CE, FCC |
