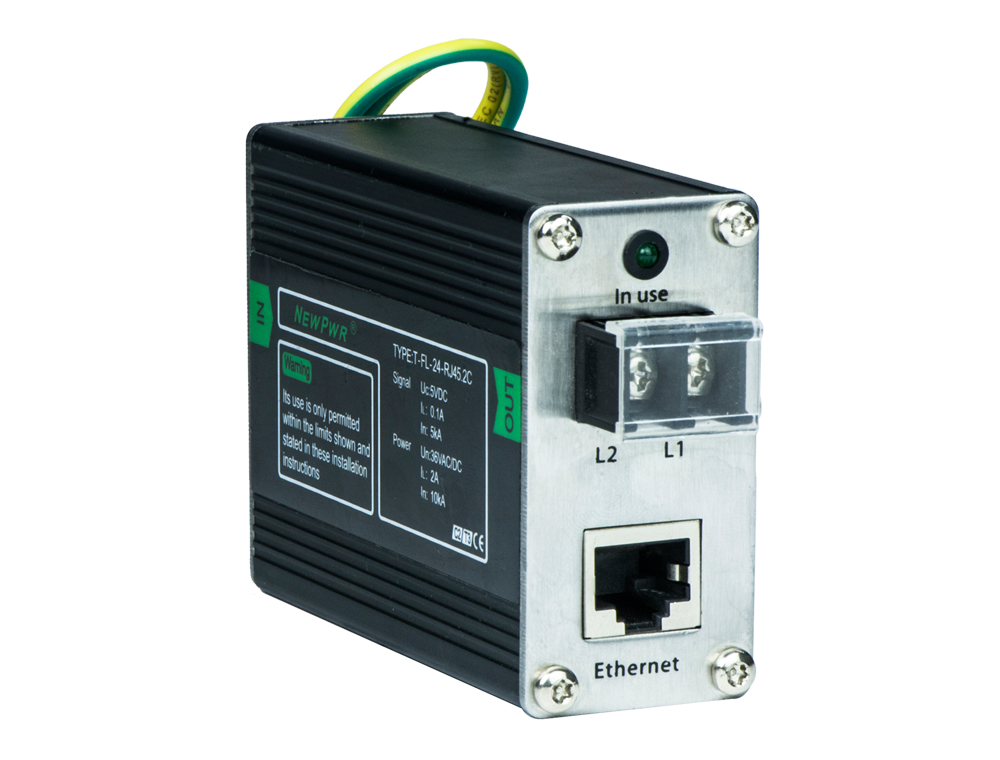

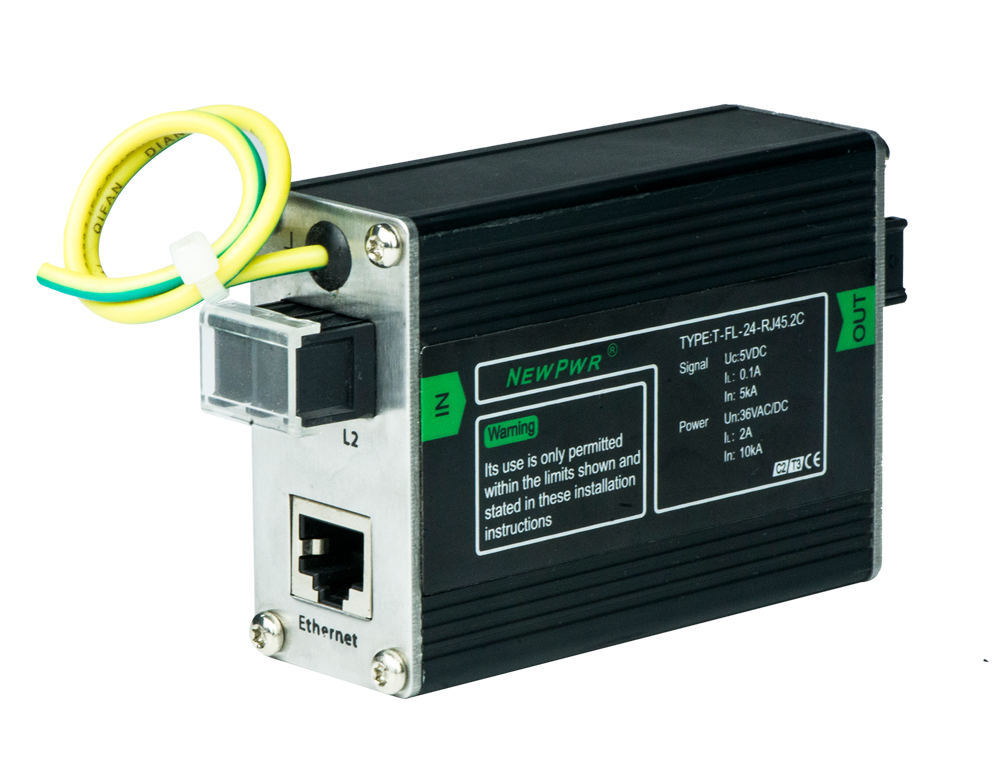

T-FL-220-RJ45.2C

According to IEC and GB standard，，，，， ， ， ，SPD can release high voltage pulse energy,and limit surge in a safety voltage level. It is suitable for LPZ0B ~ LPZ2 area and higher.
玖鼎集团(中国区)有限公司官网

Type

Nomimal Voltage

Share
T-FL-220-RJ45.2C

【Core technology】


【Installation and disposal】




                                                                                                                                    Installation                                                                                             Disposal


【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un Network: 5 VDC, Power: 220 VAC
Max. continuous operating voltage Uc Network: 5 VDC, Power: 320 VAC
Nominal current IL Network: 500 mA, Power: 5 A
Response time Ta 1 ns
Bandwidth fG 100 MHz
Lightning parameters
Lightning impulse current Iimp(10/350 μs) ,D1 Network: 0.5 kA, Power: 1 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 Network: 2.5 kA, Power: 5 kA
Voltage protection level Up(8/20 μs) ，，，，， ， ， ，C2 Network≤35V(L-L)/600V(L-PE), Power<1500 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material Metal aluminum
Color black
Protection degree IP20
Mechanical specifications
Installtion 35 mm DIN rail
Interface mode RJ45/terminal
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CE, FCC, Lightning protection
