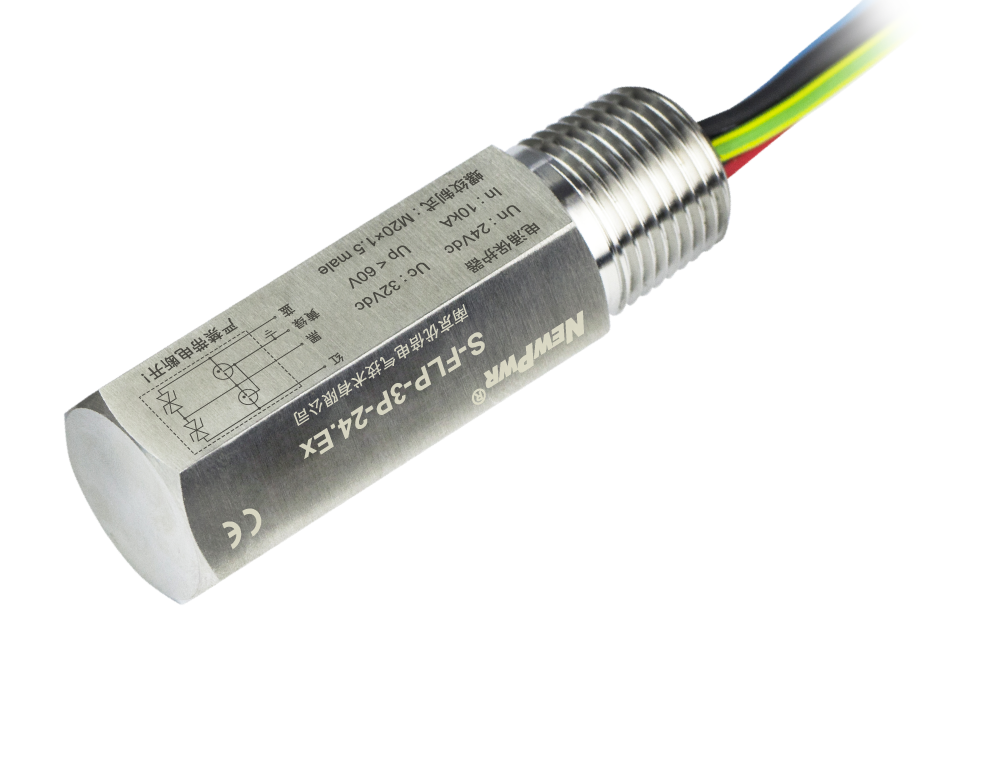

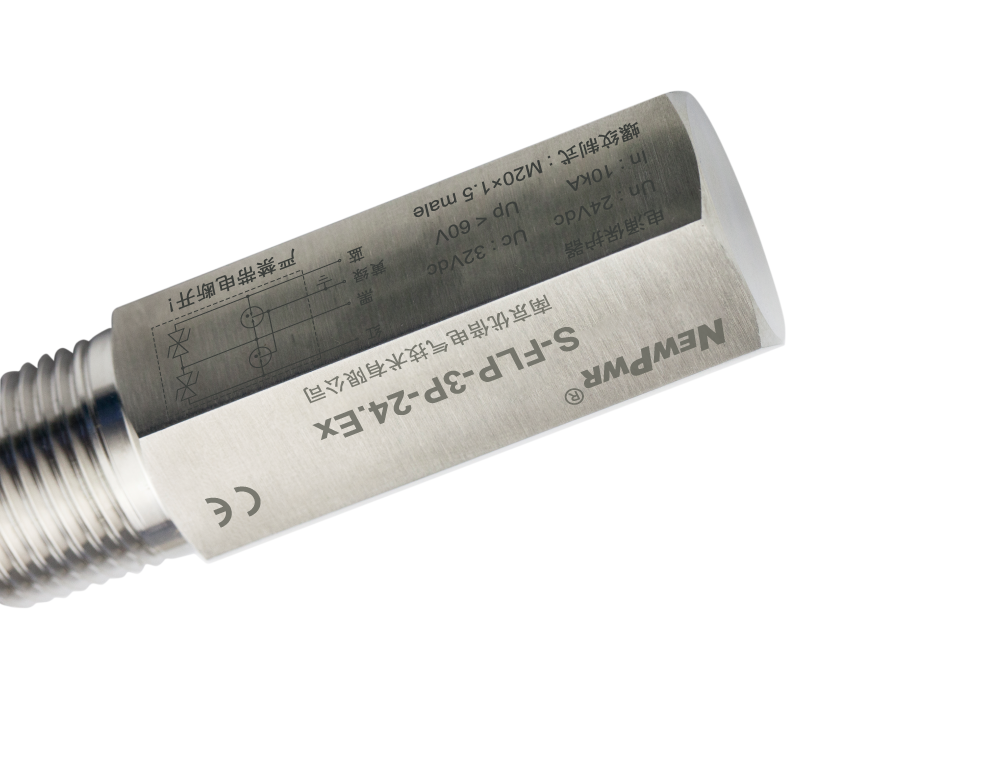

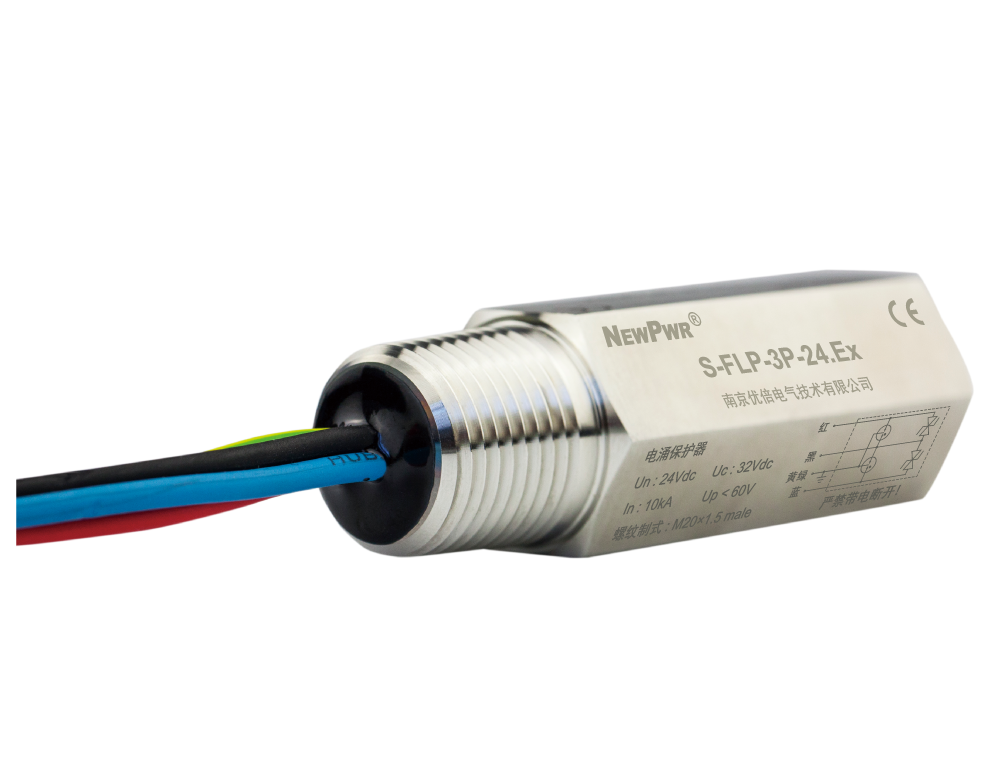

S-FLP-3P-24.Ex

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 3-wire transmitter, RS232 and RTD ect.
玖鼎集团·(中国区)有限公司官网 玖鼎集团·(中国区)有限公司官网 玖鼎集团·(中国区)有限公司官网

Wire system

Thread specification

Connection mode

Ex

Share
S-FLP-3P-24.Ex

【Core technology】




【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Voltage Un 24 V
Max. continuous voltage Uc (DC) 34 V
Max. continuous voltage Uc (AC) 24V
Response time Ta ＜ 1 ns
Bandwidth fG (100 Ω resistance) 10 MHz
Lightning parameters
Impulse current Iimp (10/350 μs) 2.5 kA
Total discharge current Imax (8/20 μs, C2) 20 kA
Discharge current per path In (8/20 μs, C2) 10 kA
Voltage protection Up (8/20 μs, C2) L – L ≤ 60 V/ L – PE ≤ 600 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material 304/316, stainless steel or other
Flame retardant grade(UL94) V0
Protection degree IP67
Mechanical specifications
Installtion Parallel form structure
Grounding mode Connecting lead
Output wire size 1.5 mm?, length 250 mm, Multiple lines to soft or hard, wear-resistance
Thread size (match) M20×1.5, 1/2" NPT, 3/4" NPT, etc. (Pin thread)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CNEX, SIL, CE, FCC, CCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 0.233 FIT
λDU (1 FIT=10-9/h) 0 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 0.233 FIT
SFF 100%
PFDavg(T1=1Y) 0.00E-00
PFH 0.00E-00 1/h
Intrinsically safe circuit certification Ex db ⅡC Gb 、Ex ia ⅡC T6 Ga
Ui 30 V
Ii 33 mA
Pi 247.5 mW
Ci 0 μF
Li 0 mH
